Properties:The pleated stainless steel wire mesh is a deep filter and the material is Stainless steel weaving wire cloth is weaved with stainless steel wire.
Send us email
filter@xinlifilters.comCall us
+86-15836052206The pleated stainless steel wire mesh is a deep filter and the material is Stainless steel weaving wire cloth is weaved with stainless steel wire. These filter elements have such characteristics of good strength fastness, easy cleaning, high temperature resistance, low cost.
Polymer ,water treatment, oil, pharmaceutical ,food and beverage, chemical, synthetic filtration ,and medium filtration such as high temperature.

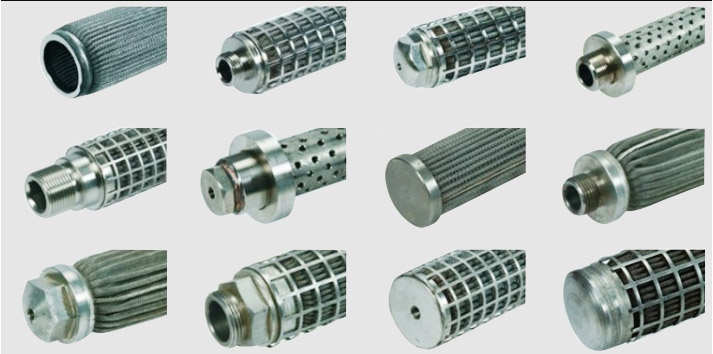

1. Standard Adaptors (222,220,226)
2. Fast Interface Connector
3. Threaded Connector
4. Flange
5. Tire Rod
6. Other Special Adaptors
1. Large filtration are (5-10times) as normal cartridge shape filter element;
2. High filtering efficiency;
3. Simple technical process as gas is filtered directly.
4. Good air permeability,stable filter rating,no leakage.
|
Product Type |
Material |
Micron (um) |
Outer Diameter (mm) |
Length | Connector | O-Ring/Gasket |
Filter Media |
| Pleated | SS304 |
1,2,5,10,15,20, 25,30,40,50,Etc |
30 | 5’’ | 1’’ BSP Threaded | Silicore | Stainless Steel Wire Mesh |
| SS316L | 60 | 10’’ | NIL-Cut Ends | Buna-N | Mesh + Sintered Fiber Felt | ||
| Other | 65 | 20’’ | DOE | Viton | |||
| 80 | 30’’ | 222/Seal | Teflon | ||||
| 85 | 40’’ | 226/Seal |
Ethylene Propylene |
||||
|
The above options are freely combined, For Example: Pleated 316l;Micron:5;Out Dia:60;Length:20’’;Connector:222;Gasket:Silicore;Fiter Media:Stainless steel wire mesh Notice:It also can be customized according to your requirerment |
|||||||
