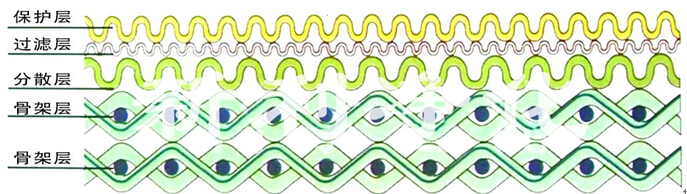

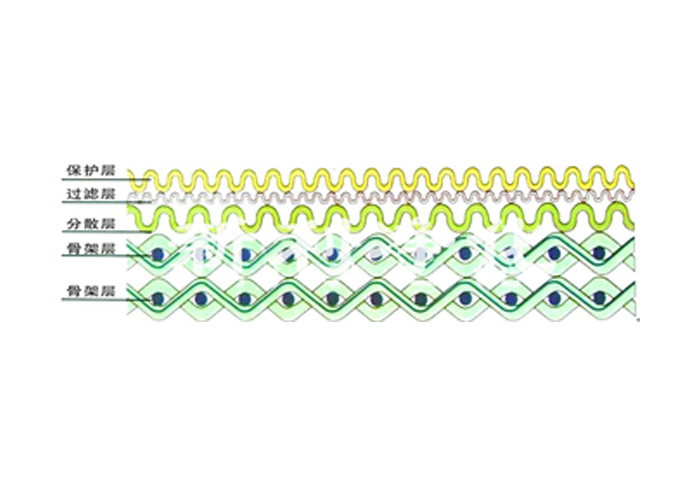

Standard sintered five-layer mesh consists of the protective layer, the filter layer, the dispersion layer, and two reinforcing layers. It provides excellent performance such as uniform and stable precision and high strength, so it is ideal filter medium for applications requiring high compressive strength and uniform filtering particle.
Send us email
filter@xinlifilters.comCall us
+86-15836052206Standard sintered five-layer mesh consists of the protective layer, the filter layer, the dispersion layer, and two reinforcing layers. It provides excellent performance such as uniform and stable precision and high strength, so it is ideal filter medium for applications requiring high compressive strength and uniform filtering particle.
Product Features:
1.High strength and rigidity : extreme mechanical strength and pressure tolerance, can be machined, welded and assembled,
2.Uniform and stable precision: consistent filter property in various media, without apertures changing during operation.
3.Widely service environment: can be continuously in temperature ranging from-200℃ to 600℃ and filtering in acid and alkali conditions.
4.Cleanable: backwash easily, and reused with longer service span, and can be cleaned by means of ways, such as backstream, filtration liquid, ultrasonic, dissolution and baking.
Standard size: 1000mm×500mm 1200mm×600mm 1000mm×1000mm, 1200×1200mm
Standard thickness:1.7mm
Standard material:316L.Stainless steel like 304、321、904L、Hastelloy, Monel can be used either.
The parameter in the list is for your reference, the order is subject to the inspection.
Main application:
1. Polyester melt purification in chemical fiber and membrane industries.
2. High temperature filtration and corrosion liquid filtration in petroleum industry.
3. Hydraulic fuel and lubrication oil filtration in mechanical equipment.
4. Liquid purification in pharmaceutical, biological and beverage industries.
