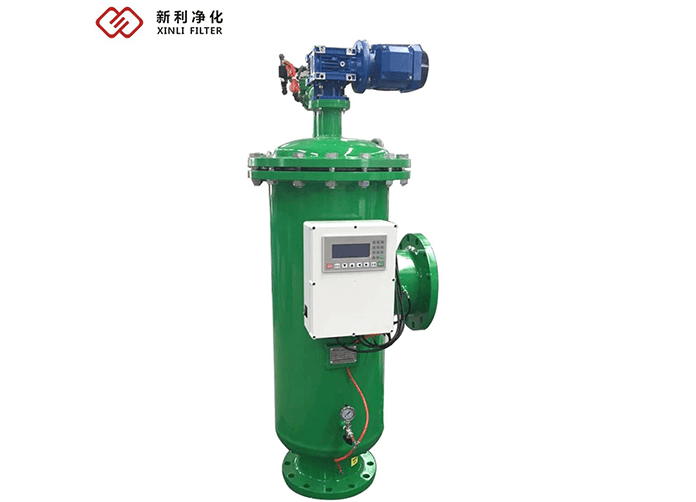

Brush type automatic self-cleaning filter

The water flows through the screen and the particles are retained on the inside of the screen of the filter element. The filtered water then flows out through the outlet.When the particles accumulated to a certain number and the pressure differential increases to the pre-determined level, the flushing cycle starts. It include two steps: First, the automatic drain valve opens on the drainage outlet. Then, electronic motor drives the cleaning brushes which are inside the screen, the solids are expelled through the drain valve. Filters continue to supply filtered water even during the flushing cycle.The whole working system is controlled by a smart box which has several control modes: pressure differential, time,manual and PLC

Product Feature

1.Simple and reliable structure;

2.Short Backwashing time,big flow,Small pressure drop loss(under0.018MPa);

3.Control mode has press difference control、time control and hand control;

4.The device can be connected to the DCS system；

5.High filtration precision、Stable water quality、Sewage water consumption<1%

6.The filter is used for life without replacement

7.Long service life

8.Low running cost, easy operation management

9.No filtration interruption when self-cleaning
