Pharmaceutical Filter Disc

Product Introduction

Pharmaceutical filter disc is an ideal filter element for filtering & cleaning & drying(simply for three in one).It’s main filter material is made of  multi-layer stainless steel sintered wire mesh welded with flange to round disc shape or cone shampe. It is mainly used in the three in one or two in one equipment for pharmaceutical,chemical,food industry etc. Compared with traditional filter cloth,it has the advantages that good rigidity,high strength,long working life,easy to clean,easy for installation etc.Filter rating will be 1~300um,diameter is 100~3000mm.

Product Image:

Disc structure:

The structure of Sany pharmaceutical filter disc is divided into integral type and fission type.

Integral type:

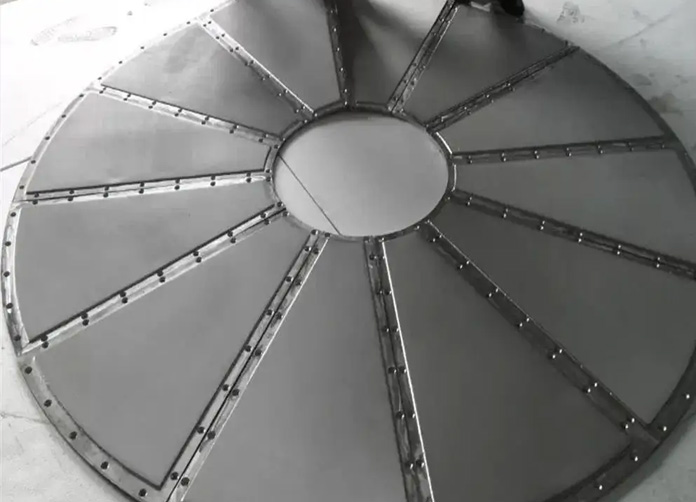

Fission type:

Integral type compare with fission type:

1. The price of integral type is higher

2. Replacement cost of fission type is lower

3. When the entrance space is small, you can only choose the fission type

Pharmaceutical Filter Disc Feature:

Good rigidity,excellent filter rating,can be cleaned repeatedly, reusable.

Sany Pharmaceutical Filter Disc Application

Widely used in pharmaceutical,chemical,food industry etc.

Product Parameter
