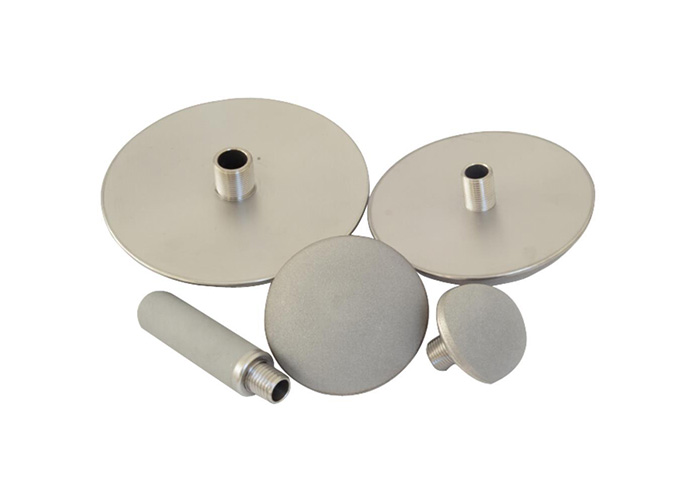

Sintered titanium powder aerator is made of high purity titanium powder, formed by isostatic pressing, molding, extrusion molding, and then by sintering in high temperature to be.
Send us email
filter@xinlifilters.comCall us
+86-15836052206sintered titanium powder aerator introduction：
Sintered titanium powder aerator is made of high purity titanium powder, formed by isostatic pressing, molding, extrusion molding, and then by sintering in high temperature to be.
sintered titanium powder aerator feature：
1. Shape stability, shock resistance and alternating load capacity superior to other metal materials;
2. Air permeability, stability of separation effect;
3. Excellent unloading strength, suitable for use in high temperature, high pressure and strong corrosive environment;
4. Especially suitable for high-temperature gas filtration;
5. Can be customized according to user requirements of various shapes and precision products, can also be welded to use a variety of interfaces.
| Material | Titanium Powder |
| Filtration Rate | 0.5-100um |
| Porosity | 28%-50% |
| Wall Thickness | 2-3mm |
| Aerated Bubble | 0.1-2mm |
sintered titanium powder aerator application：
It is especially suitable for reforming the aeration tank of urban sewage and large water plant.As well as the ozone aeration in water treatment, catalytic gas aeration in chemical industry.
|
Plate Type Sintered Titanium Powder Aerator |
|||||
|
Item |
OD(mm) |
Filtration Area(cm2) |
Inlet |
Connector |
Sealing Method |
|
XL-P240 |
240 |
452.16 |
G1/2 G3/4 |
Thread |
SIL/FKM |
|
XL-P180 |
180 |
254.34 |
|||
|
XL-P125 |
125 |
122.66 |
|||
|
Tubular Type Sintered Titanium Powder Aerator |
||||||
|
Item |
OD(mm) |
Height(mm) |
Filtration Area(cm2) |
Inlet |
Connector |
Sealing Method |
|
XL-TC |
30-60 |
50-500 |
29.83-213.52 |
G1/2 G3/4 |
Thread |
SIL/FKM |
