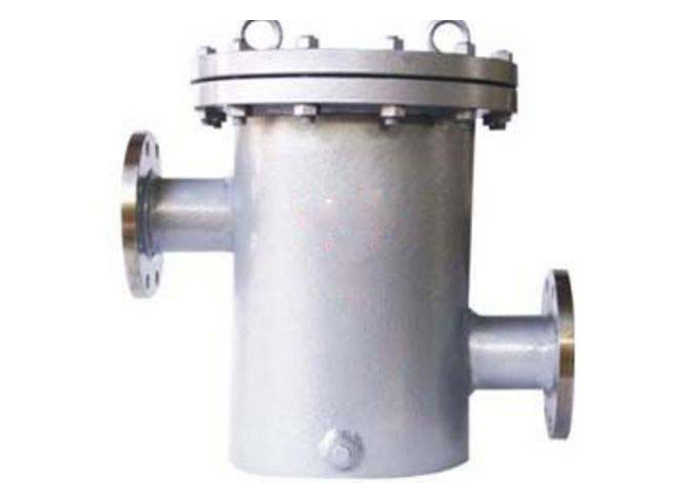

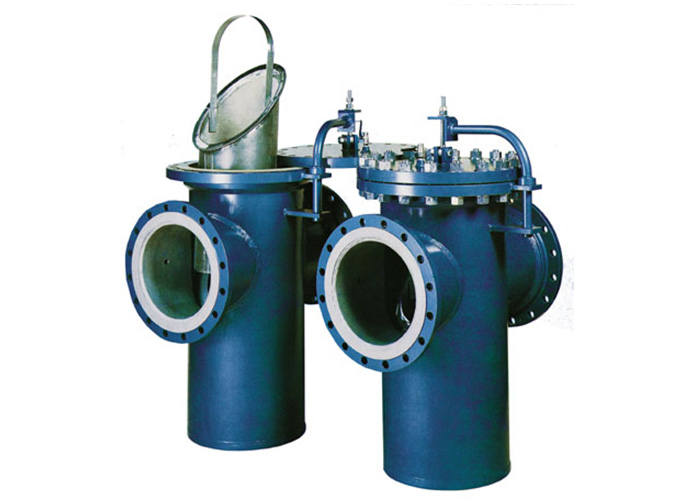

Stainless Steel Basket Stainer Filter Equipment

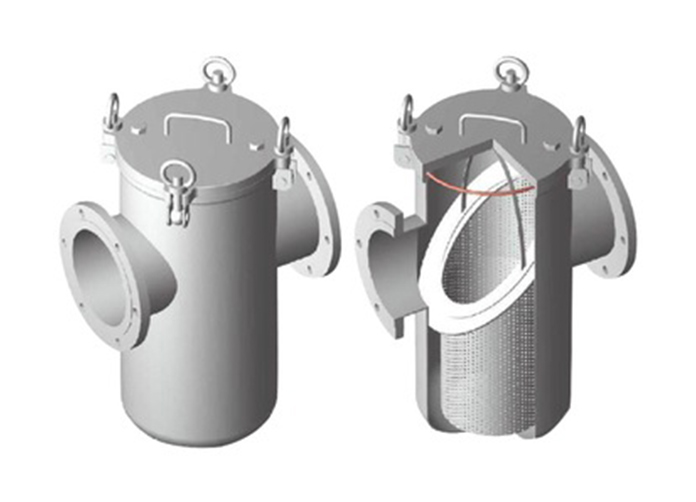

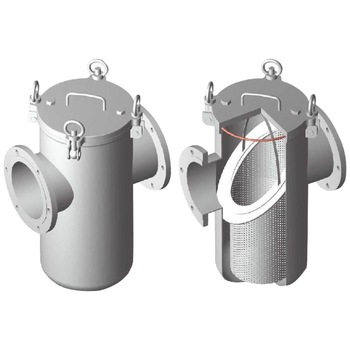

 XINLI SS Basket Stainer Filter Equipment used metal basket filter as filter element,consist of connecting pipe, cylinder,basket,flange,flange cover and fastener.The connecting pipe remove large solid impurities in the fluid,make mechanical equipment（including compressor and pump）,dashboard work normally,attach a stable process and ensure safe production.

 As the liquid enters the basket through the cylinder, solid impurities are trapped in the basket, and the clean liquid passes through the basket and is discharged from the filter outlet.When need to clean ,just  unscrew the screw plug at the bottom of the main pipe, drain the fluid, remove the flange cover, and refill it after cleaning.

Product Application:

 1.Weak corrosion material filtration: Water,oil,ammonia,hydrocarbon in chemical or oil production
2.Corrosion material filtration in chemical: Caustic soda,soda ash,concentrated sulfuric acid,Carbonic acid,Aldonic acid
3.Low temperature material in refrigeration: Liquid methane,ammonia,oxygen and various refrigerants
4. Food & Beverage and Pharmaceutical: Bear,juice,dairy products,syrup.

Product Feature:

1.Simple and reliable structure;
2.Small pressure drop loss;
3.High filtration precision;
4.The filter is used for life without replacement;
5.Long service life;
6.Low running cost, easy operation management;
7.Widely application range;
8.Easily maintain;
