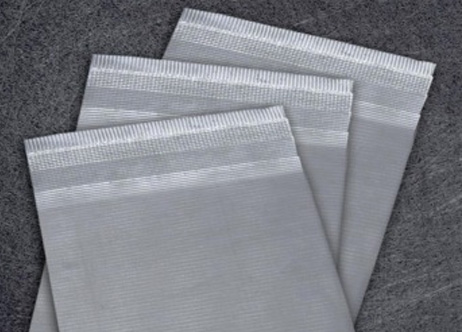

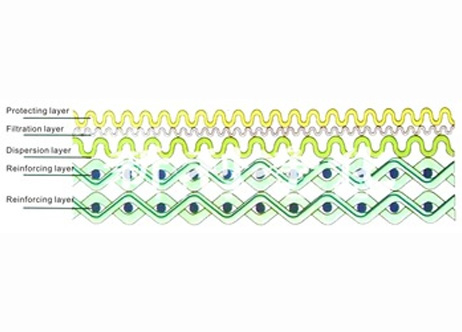

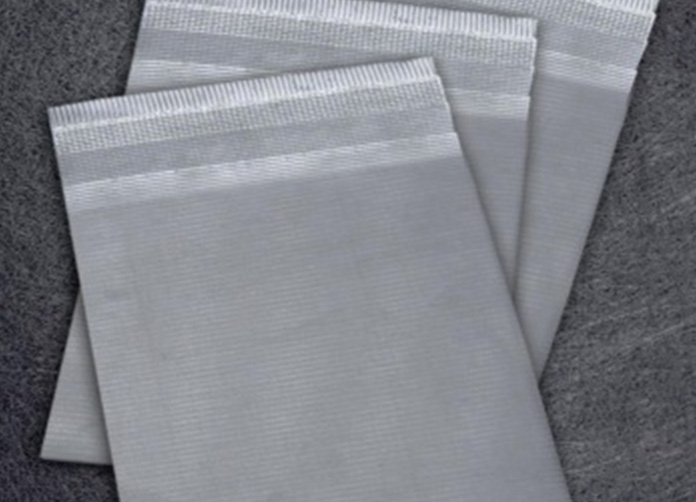

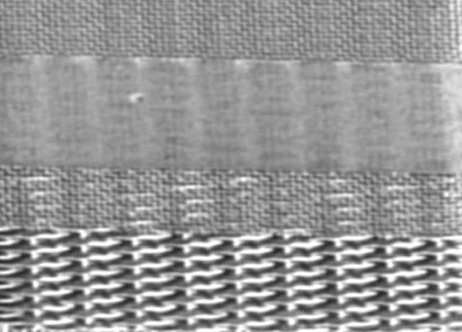

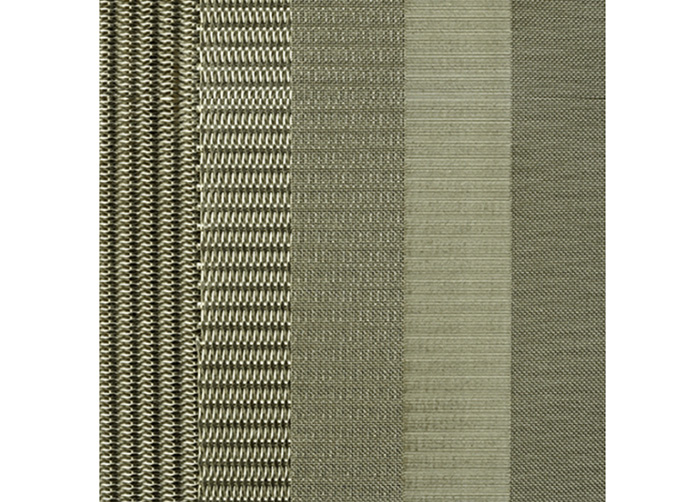

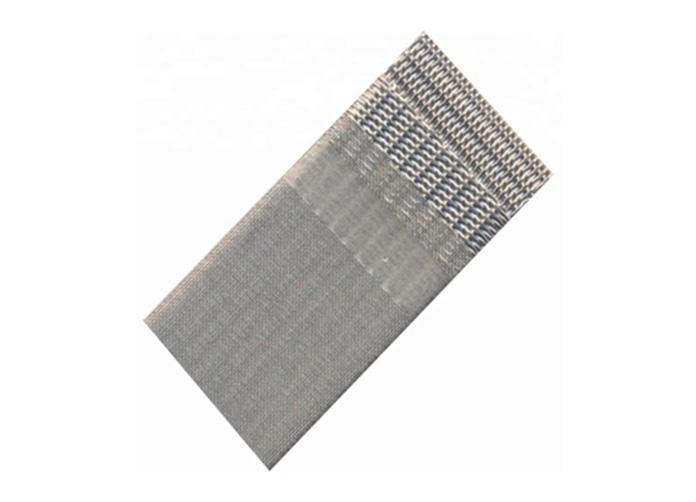

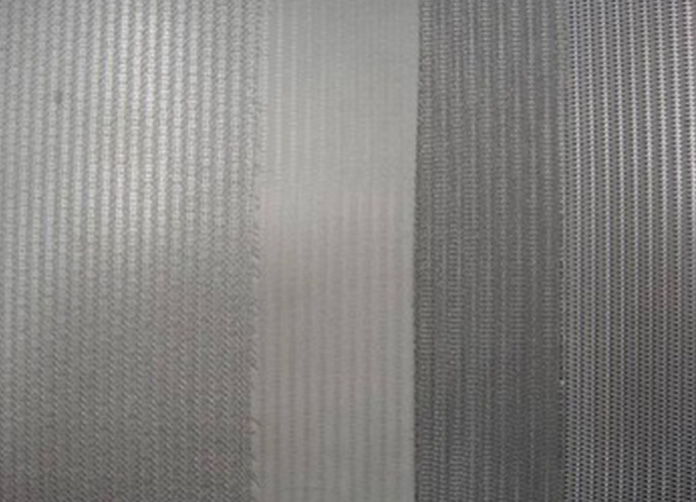

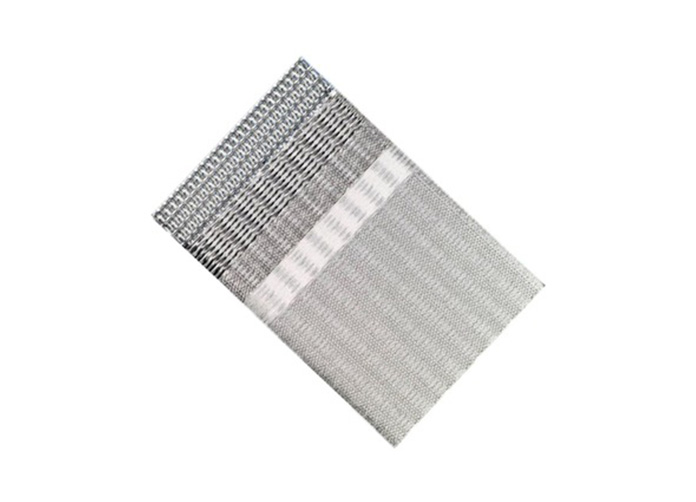

Our 5-layer sintered wire mesh is a standard and widely used type of sintered wire mesh . A single layer of fine woven wire mesh is placed between two layers of coarser square woven meshes, which is then added to two layers of a strong Dutch woven wire mesh and sintered together to form a strong plate.
Send us email
filter@xinlifilters.comCall us
+86-15836052206Our 5-layer sintered wire mesh is a standard and widely used type of sintered wire mesh . A single layer of fine woven wire mesh is placed between two layers of coarser square woven meshes, which is then added to two layers of a strong Dutch woven wire mesh and sintered together to form a strong plate. The single layer of fine woven wire mesh acts as the filtration layer, and can be customized to meet a particular filtration rating, ranging from 1 micron to 300 microns.
Standard 5-Layer Sintered Wire Mesh Feature
1.High strength: after sintering in vacuum, the multi-layer metal mesh has extremely high mechanical strength and pressure-resistance performance.
2.Excellent precision: uniform filtering performance on 1-200um particle size.
3.Heat resistance:-200°C-600°C
4.Washable/cleanable, can be used repeatedly, thus support long working life.
Standard 5-Layer Sintered Wire Mesh Application
1.Distribution and cooling material in high temperature
2.Material used for gas distribution and fluidization bed
3.Filtering material requiring high precision, stable performance in high temperature
4.High pressure backwash filter
Standard 5-Layer Sintered Wire Mesh Specification:
1.Standard material: SUS316L, SUS304
2.Standard size: 500*1000*1.7mm, 600*1200*1.7mm,1000mm*1000mm*1.7mm.
3.Filter rating:1-300um
4.Special sizes are available on request
