Weld Filter Disc used for BOPET film

Product Introduction

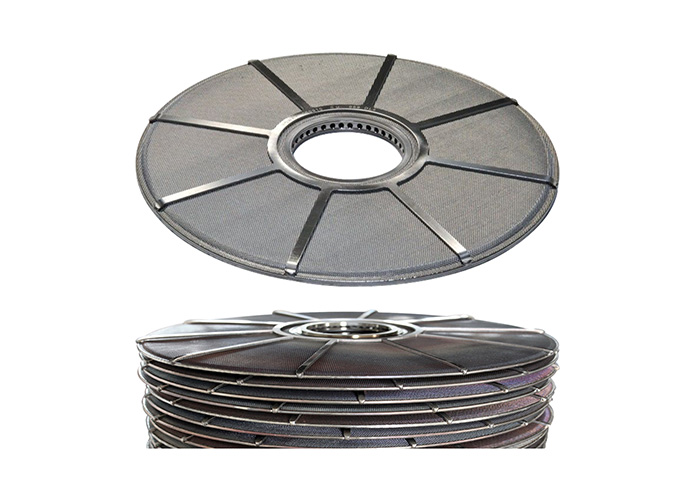

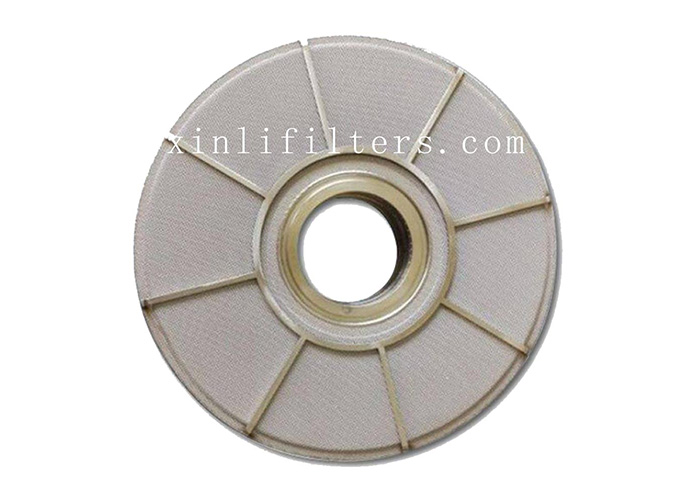

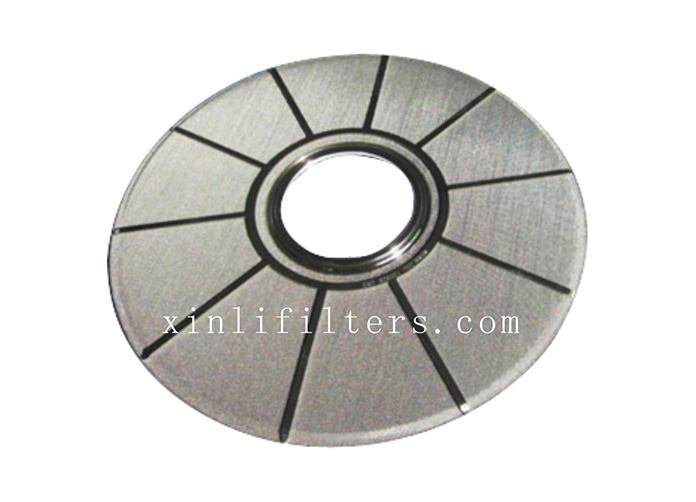

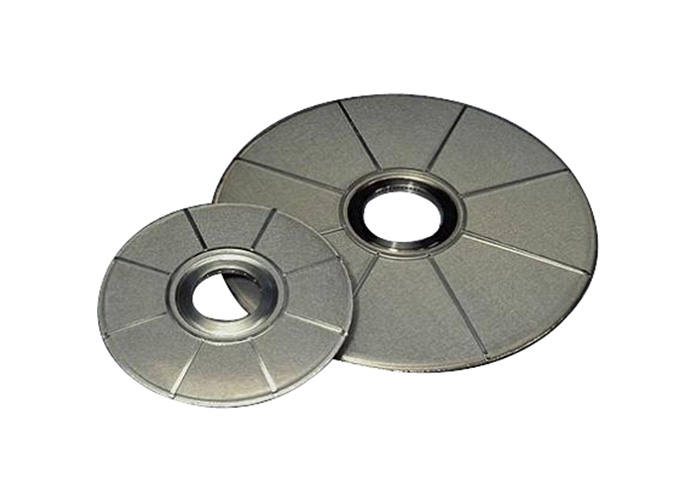

The leaf filter disc is made of sintered metal wire mesh laminates or sintered metal non-woven fiber felt medium. It is designed for critical hot melt polymer filtration applications. J

Feature:

1. High viscosity and large flow
2. Good cleaning performance
3. Long service life

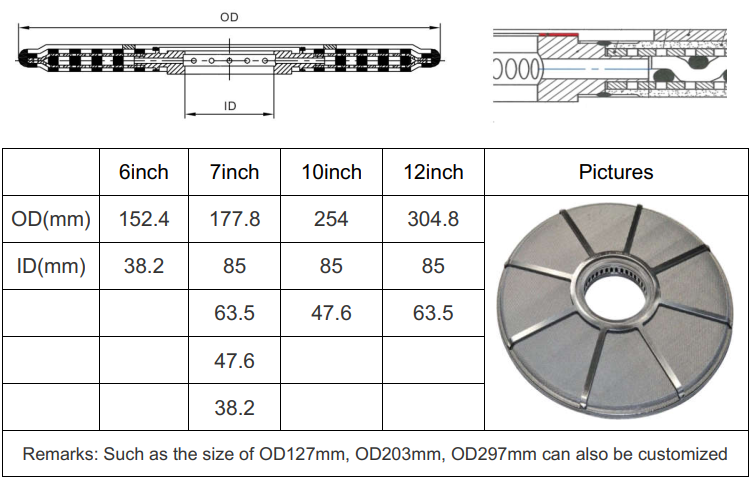

Technical parameters:

Standard material is stainless steel 316L, the other alloys can be required. And the range of micron rating is from 60microns up to 5microns absolute.

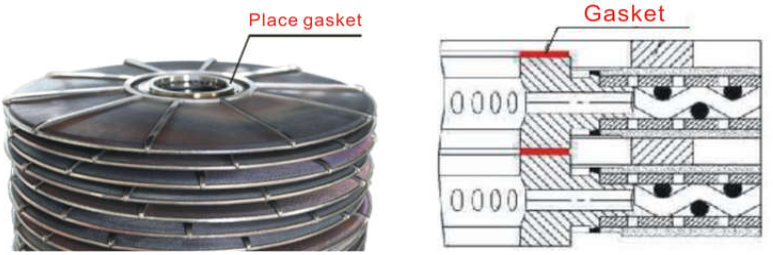

Gasket:

Matching gaskets are necessary, usually stainless steel gaskets or sintered metal fiber gaskets. If there are other material requirements, that is not a problem.

Application:

Polyester film, PA, PBT, PE, LDPE, PC, PEEK, PET, BOPET, PP, BOPP, PMMA, Carbon-Fiber,
Fiber, Resin, Sheet, EVA
